Light refraction, Snell’s law, Factors affect the absolute refractive index of a medium

Light refraction can be used in analyzing a beam of white light into its components of different wavelengths due to the difference of the absolute refractive index according to the wavelength of the incident light ray, so, the white light scatters into its components (seven colours which are different in their wavelength) and it can be seen in the soap bubbles.

Light refraction

When a light ray falls on a separating surface between two transparent media different in optical density, a very small part of light is absorbed in the second medium, Part of the light ray reflects in the first medium, and the other part passes to the second medium, changing its direction and this phenomenon is known as light refraction.

Light refraction is the bending of light as it passes from one medium to another with a different optical density. This occurs because light changes speed when moving between materials with different refractive indices. Light refraction is not just a fascinating optical phenomenon—it is essential for vision, technology, communication, medicine, and our understanding of the universe.

Common Examples of Refraction

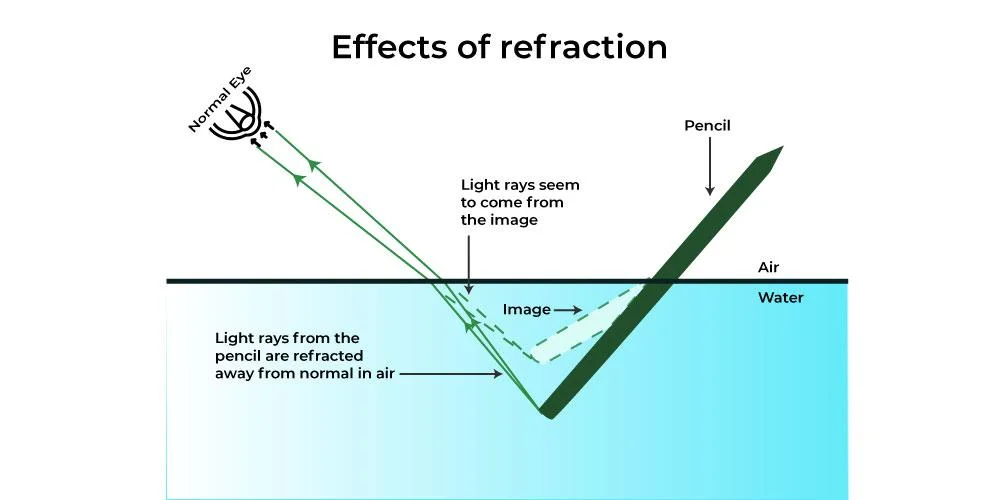

1. Bent Appearance of Objects in Water: When you place a straw or a spoon in a glass of water, it appears bent or broken at the water‘s surface. This happens because light refracts as it moves from water to air.
2. Mirage in the Desert or on Hot Roads: On a hot day, the air near the ground is much warmer than the air above it. Light refracts due to temperature differences, making it look like there is water on the road or a reflective surface in the desert.
3. Rainbow Formation: When sunlight passes through raindrops, it refracts, disperses into different colors, reflects inside the drop, and refracts again when exiting. This process creates a rainbow.
4. Lenses in Glasses and Cameras: Eyeglasses, contact lenses, and camera lenses use refraction to focus light properly, correcting vision or capturing sharp images.
5. The Apparent Depth of Water: A swimming pool or a lake appears shallower than it is because light bends as it moves from water to air.
6. Diamond Sparkle: Diamonds have a very high refractive index, which bends light inside them multiple times before it exits, creating their characteristic sparkle.
7. Prism Dispersion: A glass prism splits white light into its component colors (red, orange, yellow, green, blue, indigo, and violet) because different colors refract at different angles.

Conditions of refraction

1. The two transparent media must be different in the optical density (The velocity of light is different in the two media).
2. The light ray must not fall perpendicular to the separating surface (the angle of incidence ≠ zero).

Light refraction is the change of light path direction when it passes through two transparent media different in optical density, Angle of refraction is the confined angle between the refracted light ray & the normal line at the point of incidence on the separating surface of the two media, Optical density is the ability of the medium to refract the light rays when they pass through it.

Light refraction obeys two laws, which are:

First law: The ratio between the sine of the angle of incidence (sin Φ) in the first medium to the sine of the angle of refraction (sin Θ ) in the second medium is equal to the ratio of the speed of light (V₁) in the first medium to the speed of light (V₂) in the second medium.

The ratio is constant for the two media and is called relative refractive index  1n2.

₁n₂ = sin Φ / sin Θ = V₁ / V₂

Second law: The incident light ray, the refracted light ray, and the normal line at the point of incidence all lie in the same plane which is perpendicular on the separating surface between the two media.

From the first law: sin Φ = sin Θ

When plotting a relation between sin Φ, and sin Θ, we get a straight line, Its slope represents the relative refractive index between the two media.

Slope = sin Φ / sin Θ = ₁n₂

The relative refractive index between two media (1n2) is the ratio between sine the angle of incidence in the first medium to the angle of refraction in the second medium, or it is the ratio between the speed of light in the first medium to the speed of light in the second medium.

When the relative refractive index between the glass and the water = 0.86, this means that the ratio of the speed of light in the glass to the speed of light in the water = 0.86.

Factors affect the relative refractive index between two media:

1. The wavelength of the incident light ray.
2. The velocity of light in the incidence medium (the type of incidence medium).
3. The velocity of light in the refractive medium (the type of refractive medium).


The absolute refractive index of a medium

If the light ray passes from the space or the air to any other transparent medium, The ratio between sine the angle of incidence in the space (sin Φ) to sine the angle of refraction in the medium (sin Θ) equals the ratio between the speed of light in the space (c) to the speed of light (v) in the medium, this ratio is constant for the medium and it is called the absolute refractive index of the medium (n).

n = sin Φ / sin Θ = V₁ / V₂

The absolute refractive index of the medium (n) is the ratio between sine the angle of incidence in the space to sine the angle of refraction in the medium, or it is the ratio between the speed of light in the space to the speed of light in the medium.

The absolute refractive index of any medium is always more than one, because the speed of light in space is more than its speed in any other medium, The absolute refractive index has no measuring units because it is a ratio between two similar physical quantities.

The absolute refractive index of a medium is inversely proportional to the speed of light in this medium (n ∝ 1/v) When plotting a relation between (sin Φ) in air and (sin Θ) in any medium, we get a straight line, Its slope represents the absolute refractive index (n) for this medium.

Slope = sin Φ / sin Θ = n

When the absolute refractive index of a medium = 1.5, this means that the ratio of the speed of light in the space to the speed of light in that medium is 1.5.

Factors affect the absolute refractive index of a medium

The wavelength of the incident light ray, where the absolute refractive index differs according to the wavelength of the incident light ray, so, the white light disperses into its components (seven colours different in their wavelength), which can be seen in soap bubbles.

Accordingly, the light refraction phenomenon can be used in the dispersion of white light into its components with different wavelengths, The velocity of light in this medium (The type of medium).

The relation between the relative refractive index and the absolute refractive index

n = c / v     ,    v = c / n     ∴     v₁ / v₂ = n₂ / n₁

₁n₂ = v₁ / v₂

∴ ₁n₂ = n₂ / n₁

The relative refractive index between two media equals the ratio between the absolute refractive index of the second medium to the absolute refractive index of the first medium.

Snell’s law

From the first law of refraction :

1n2 = sin Φ / sin Θ   ,     1n2 = n₂ / n₁

sin Φ / sin Θ = n₂ / n₁

n₁ sin Φ = n₂ sin Θ

Snell’s law: The absolute refractive index for the medium of incidence times sine the angle of incidence is equal to the absolute refractive index of the medium of refraction times sine the angle of refraction.

When the light ray falls perpendicular to the separating surface, it does not suffer any refraction, according to Snell’s law (n₁ sin Φ = n₂ sin Θ), when the light ray falls normally on the separating surface between the two media (Φ = 0°) then n₂ sin Θ = 0 and angle of refraction (Θ = 0°).

Explanation of refraction

When a light ray falls from an optically less dense medium to a more dense one (from air to glass), the light ray refracts approaching the normal line.

This resembles a car in which one of its wheels goes through muddy soil, which makes it slow down, while the other is free on the paved road, Therefore, the car changes its direction.

The opposite occurs, as in refraction from a more optically dense medium to a less dense one, The refracted ray refracts away from the normal.

Importance of Light Refraction

1. Vision and Corrective Lenses: The human eye relies on refraction to focus light on the retina, enabling clear vision. Eyeglasses and contact lenses correct vision problems (e.g., nearsightedness, farsightedness) by adjusting the way light bends before reaching the eye.
2. Optical Instruments: Cameras, microscopes, and telescopes use lenses that refract light to magnify images or focus on distant objects. Binoculars and magnifying glasses depend on refraction to enhance visibility.
3. Rainbow and Atmospheric Effects: Rainbows are created when sunlight refracts and disperses through water droplets in the air. Atmospheric refraction causes phenomena like the twinkling of stars, making them appear to flicker due to the bending of light in different air layers.
4. Underwater Vision and Apparent Depth: Objects underwater appear closer to the surface than they are due to refraction. Scuba divers and fishermen use the knowledge of refraction to judge distances in water.
5. Fiber Optic Communication: Fiber optic cables use total internal reflection, a special case of refraction, to transmit data as light pulses over long distances without signal loss. This technology is essential for high-speed internet and telecommunication networks.
6. Medical Applications: Endoscopes, which allow doctors to see inside the human body, use refraction in optical fibers. Laser eye surgeries (e.g., LASIK) correct vision by reshaping the cornea to adjust light refraction.
7. Astronomy and Space Exploration: Refraction is used in telescopes to observe distant celestial objects more clearly. It also helps astronomers study planetary atmospheres by analyzing how light bends when passing through them.
8. Industrial and Scientific Uses: Refraction is crucial in designing optical coatings, sensors, and displays. Used in spectroscopy, where different materials are analyzed based on how they refract light.
9. Safety Applications: Reflective road signs and vehicle headlights use refraction principles to improve visibility at night. Optical fibers are used in security systems and sensors for detecting changes in light refraction.
